Name: GeForce RTX 2070 Dual O8G Mini
Brand: ASUS
SKU: 12881567
Rating: 5 (2 reviews)

productDetailPageQuery

ASUS

The ROG Strix GeForce RTX 2070 combines a high-end nVidia GPU with the work of top-notch specialists to deliver the stage for epic gaming action. A gigantic power supply provides the necessary power to push the limits when overclocking. At the same time, a perfectly tuned cooling system ensures that Turing performance is always in the spotlight. And with an arsenal of utilities that let you customize and optimize this extreme hardware, you're in charge.

ASUS patented Wing-Blade fan design is not only cool and quiet, but also provides 105% more static pressure over the heatsink compared to conventional axial fans. The IP5X dust protection seals the internal parts of the fan against the ingress of dirt particles, ensuring smooth operation. The 0dB technology stops the fans as soon as the GPU drops below a core temperature of 55°C, allowing less demanding games to be enjoyed in complete silence. When the temperature rises, the fans are automatically restarted.

MaxContact is an industry-leading technology that uses precision machining to create a heat conducting surface that makes up to 2x more contact with the GPU chip. This leads to an improved heat transfer.

All ROG Strix graphics cards are manufactured using Auto-Extreme technology, an automated manufacturing process that sets new industry standards. Traditionally, the soldering of through-hole and SMD components must be carried out in separate steps. With Auto-Extreme technology, all soldering operations can be performed in one step, reducing thermal stress on components and eliminating the use of harsh cleaning chemicals. The result is less environmental impact, reduced power consumption and a more reliable product.

With a metal frame that prevents excessive twisting and lateral bending of the PCB, ASUS engineers have tripled the structural integrity of the ROG Strix GeForce RTX 2070.

Key specifications

Length

Number of shaders

A shader in the field of computer graphics is a set of software instructions, which is used by the graphic resources primarily to perform rendering effects. Shaders are used to allow a 3D application designer to program the GPU (Graphics Processing Unit) "programmable pipeline", which has mostly superseded the older "fixed-function pipeline", allowing more flexibility in making use of advanced GPU programmability features.

Graphics card model

A video card, also referred to as a graphics accelerator card, display adapter, graphics card, and numerous other terms, is an item of personal computer hardware whose function is to generate and output images to a display.

Video memory clock

Clock speed of the graphics memory, which is calculated depending upon type of memory (GDDR5, etc.) from the effective memory clock. A graphics card with effective memory clock of 975MHz and GDDR5 memory type has, thus a memory clock of 3.9 GHz since GDDR5 allows a 4X data transfer per clock cycle.

Length	19.70 cm
Number of shaders	2304 x
Graphics card model	GeForce RTX 2070
Video memory clock	14 GHz
Max. connected monitors	4 x
Max. Video resolution	7680 x 4320 pixels
Power consumption	500 W
Item number	12881567

Manufacturer	ASUS
Category	Graphics card
Manufacturer no.	90YV0EC0-M0NA00
Release date	10.3.2020

Max. connected monitors	4 x
PCI Express version	PCIe 3.0
Max. Video resolution	7680 x 4320 pixels
Expansion card form factor	2 slots
LED colour	RGB

Graphics chip (GPU)	nVidia GeForce
Graphics card model	GeForce RTX 2070
Processor clock frequency	1410 MHz
Boost frequency	1680 MHz
Number of shaders	2304 x

Video memory type	GDDR6
Storage capacity	8 GB
Video memory clock	14 GHz
Memory Interface	256 bits

Your data. Your choice.

Search

ASUS GeForce RTX 2070 Dual O8G Mini

Product details

Key specifications

General information

Graphics card properties

Graphics processing unit

Video memory

Cooling properties

Graphics card technologies

Connections

Power supply

Product dimensions

Package dimensions

Legal Notice

Reviews & Ratings

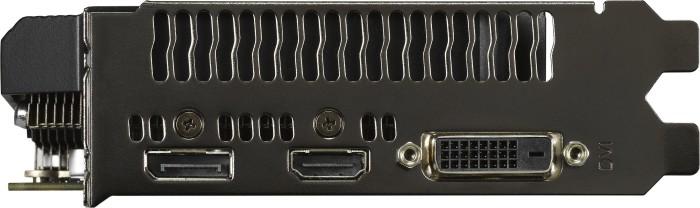

Video connections	DisplayPort (1x), DVI-D (Dual Link) (1x), HDMI (1x)
HDMI version	2.0
DisplayPort version	1.4

Graphics card technologies
DirectX version	12
OpenGL version	4.60

Product dimensions
Length	19.70 cm
Width	12.10 cm
Height	3.90 cm

Package dimensions
Length	30.50 cm
Width	22.10 cm
Height	5.50 cm
Weight	850 g
