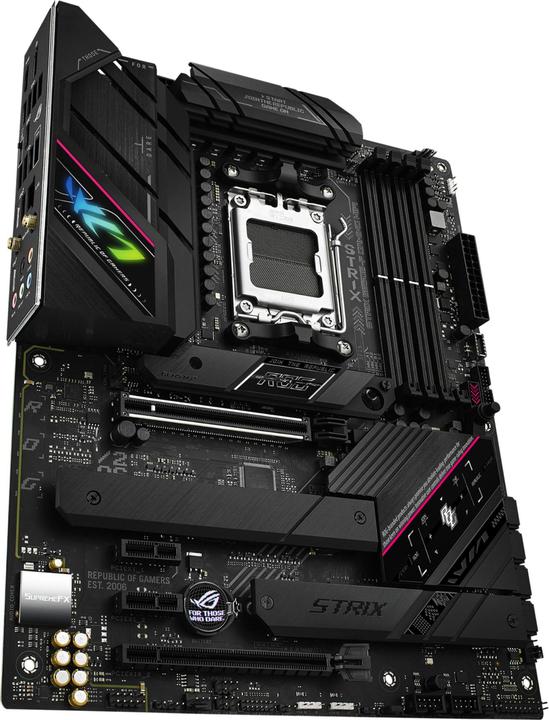

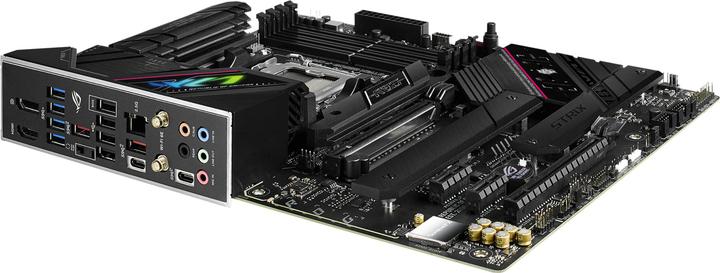

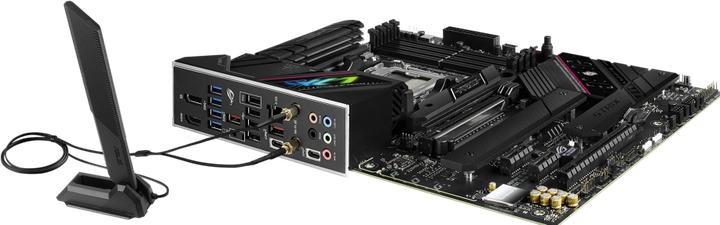

ASUS ROG STRIX B650E-F GAMING WIFI

AM5, AMD B650E, ATX
Price in EUR including VAT, free shipping
91Ratings
BrandMore from ASUS
Test reportsVery good based on 1 test
Delivered between 1/1/2025 and 11/1/2025
More than 10 items ordered

Product details

This mean machine is the heart of your next hot rod. With the blazing speed of PCIe 5.0 and WiFi 6E, powerful cooling from integrated heatsinks and advanced power design built for Ryzen processors, the
ROG Strix B650E-F leaves its competition behind.

Key specifications

Processor family
Ryzen 5 7th Gen,
Ryzen 7 7th Gen,
Ryzen 9 7th Gen
Memory type
DDR5 RAM
Internal connection options
24-pin ATX power connector (1x),
4-pin ATX 12V (1x),
4-pin CPU (1x),
4-pin Molex (5x),
8-pin ATX 12V (2x)
Wireless transmission
Bluetooth,
Wi-Fi
Peripheral connections
USB 2.0 Type-A (2x),
USB 3.2 Gen 2 (6x),
USB Type-C (2x)
Item number
22605357

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1BQ0-M0EAY1
Release date
22.9.2022

Motherboard properties

Form factor
ATX
Processor socket
AM5
Chipset
AMD B650E
Mainboard features
Clear CMOS Button,
COM Port Header,
RGB header,
S/PDIF header,
Thunderbolt header
Operating system compatibility
Windows 11 Home,
Windows 11 Pro
Peripheral connections
USB 2.0 Type-A (2x),
USB 3.2 Gen 2 (6x),
USB Type-C (2x)
BIOS type
UEFI AMI
Wireless transmission
Bluetooth,
Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Ryzen 5 7th Gen,
Ryzen 7 7th Gen,
Ryzen 9 7th Gen

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR5
Max. RAM OC
6400 MHz
Supported memory speed
4800 MHz,
5000 MHz,
5200 MHz,
5400 MHz,
5600 MHz
Memory type
DDR5 RAM
RAM buffer
ECC Registered
Channel architecture
2

Graphics properties

Video connections
DisplayPort (1x),
HDMI (1x)
Video connection version
Display port 1.4,
HDMI 2.1

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Ethernet controller brand
Intel
Ethernet controller
Intel
Max. port speed
2.50 Gbit/s
Maximum port speed 2
2.50 Gbit/s

Audio

Chip
ALC4080
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (5x)

Internal interfaces

Internal connection options
24-pin ATX power connector (1x),
4-pin ATX 12V (1x),
4-pin CPU (1x),
4-pin Molex (5x),
8-pin ATX 12V (2x)
Expansion slot
PCI Express x1 (2x),
PCI Express x16 (2x)
PCI express version (max.)
4
Number of fan connector
7

Power supply

Power connectors
8-pin PCI-E

Sustainability

Manufacturer commitment
RE100,
SBTi

Product dimensions

Length
305 mm
Width
244 mm
Height
244 mm
Weight
9220 g

Package dimensions

Length
34.90 cm
Width
27.80 cm
Height
8.10 cm
Weight
2.10 kg

14-day cancellation right
30-day right of returnReturn policy
24 Months Statutory warrantyGuarantee provisions

Reviews & Ratings

Statutory warranty score

How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?

Source: Galaxus
  • 1.MSI
  • 3.AsRock
  • 4.ASUS
  • 5.NZXT
  • 6.Biostar

Statutory warranty case duration

How many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?

Source: Galaxus
  • 1.MSI
  • 1.NZXT
  • 5.ASUS
  • 5.Biostar
  • 7.Supermicro

Return rate

How often is a product of this brand in the «Motherboards» category returned?

Source: Galaxus
  • 2.Gigabyte
  • 2.Supermicro
  • 4.ASUS
  • 5.NZXT
  • 6.AsRock
Source: Galaxus

Translation: machine translated
Very good93/100
gamezoom.netSingle testReleaseJune 2023
  • Positivenumerous connection options
  • Positivetop processing
  • Positivesophisticated layout
  • PositiveExtensive and clear bios
  • PositiveCustomisable RGB lighting
  • PositiveVery good onboard sound solution
