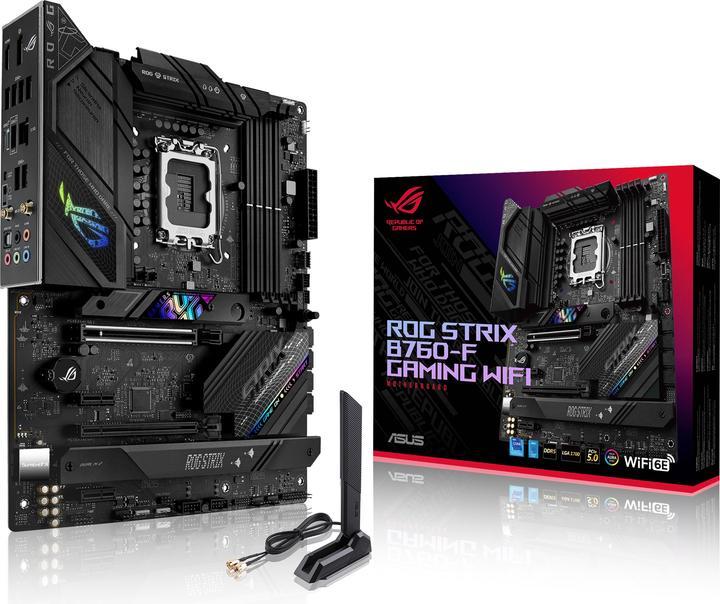

ASUS ROG STRIX B760-F Gaming WIFI
LGA 1700, Intel B760, ATXPrice in EUR including VAT
Delivered Mon, 28/4
Only 1 item in stock
Only 1 item in stock
Product details
The ASUS ROG STRIX B760-F Gaming WIFI motherboard is a powerful and versatile choice for gamers and enthusiasts using an Intel LGA 1700 processor. The board features a robust power supply that provides stable performance and overclocking capabilities.
Key features of the ASUS ROG Strix B760-F Gaming WIFI motherboard include support for DDR4 memory with a maximum capacity of 128 GB and a clock speed of up to 4800 MHz. It also offers a variety of ports and expansion options, including an M.2 slot for fast NVMe SSDs, USB 3.2 Gen 2 ports for quick data transfers, and integrated Wi-Fi 6 for a fast and stable wireless connection.
Processor family | Celeron, Core i3, Core i5 |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header, Thunderbolt header |
Item number | 23621347 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1CT0-M0EAY0 |
Release date | 29/11/2022 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header, Thunderbolt header |
Operating system compatibility | Windows 10, Windows 11 Home, Windows 11 Pro |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Celeron, Core i3, Core i5 |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 7800 MHz |
Supported memory speed | 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz, 7800 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC4080 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x), Jack 3.5mm Line In (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (2x), PCI Express x16 (1x) |
PCI express version (max.) | 3 |
Number of fan connector | 4 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (3x) |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin PCI-E |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables, User manual |
Length | 244 mm |
Width | 305 mm |
Height | 70 mm |
Weight | 2040 g |
Length | 36 cm |
Width | 27 cm |
Height | 7 cm |
Weight | 2.02 kg |
