ASUS ROG STRIX X670E-E GAMING WIFI
AM5, AMD X670E, ATXPrice in EUR including VAT, free shipping
Delivered between Wed, 7/5 and Sat, 10/5
8 items in stock at supplier
8 items in stock at supplier
Product details

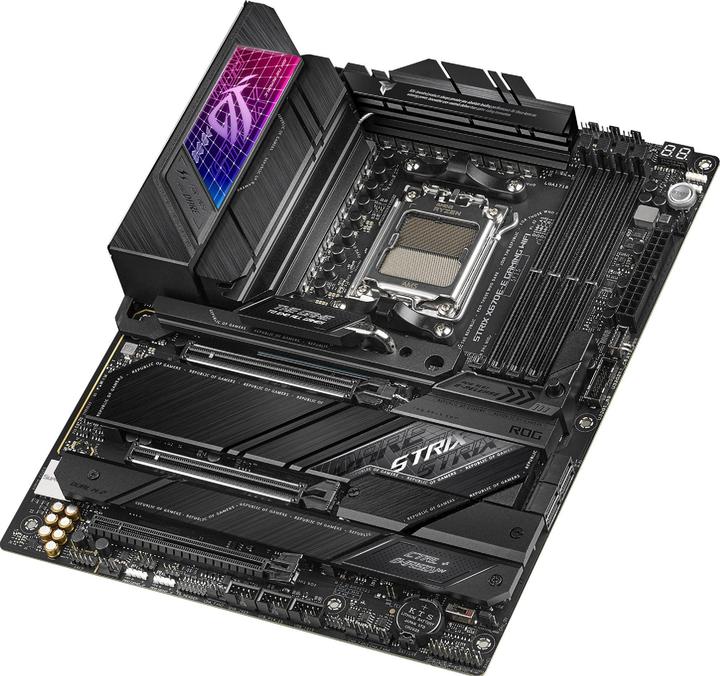

The ROG Strix X670E-E Gaming WiFi stands at the top of the series, offering robust power delivery and exclusive ROG overclocking tools to maximize the performance of AMD Ryzen 7000 series processors. PCIe 5.0 support pushes the limits of chipset capabilities, and an additional strong heatsink ensures that even the fastest M.2 drives remain cool. With leading performance, cutting-edge connectivity, and DIY-friendly features ranging from hardware installation to system setup, this Strix beast targets AM5 and effortlessly soars to victory.
Processor family | Ryzen 7th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (4x), S-ATA III (4x) |
Wireless transmission | Bluetooth |
Mainboard features | Front panel audio connector, Power-On Button, RGB header |
Item number | 22445220 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1BR0-M0EAY0 |
Release date | 16/8/2022 |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD X670E |
Mainboard features | Front panel audio connector, Power-On Button, RGB header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth |
Wi-Fi standard | Wi-Fi 6E / 802.11az |
Processor family | Ryzen 7th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 6400 MHz |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

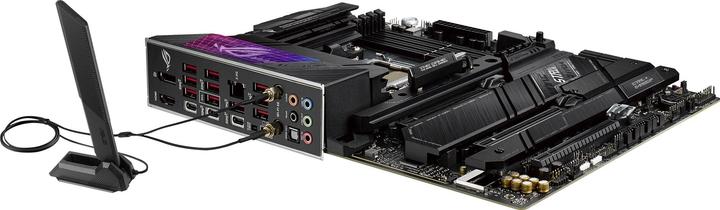

Video connections | DisplayPort (1x), HDMI (1x), Thunderbolt (1x) |
Video connection version | Display port 1.4, HDMI 1.2 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC4080 |
Audio channel | 7.1 Channel |
Audio Connections | Digital Audio Out (1x), Jack 3.5mm (5x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCIe (4x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (2x), PCI Express x16 (Gen 4) (1x), PCI Express x4 (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 5 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (3x), USB-A 3.2 Gen 1 (2x) |
Power connectors | 24-pin ATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | SATA cable |
Length | 244 mm |
Width | 305 mm |
Height | 277 mm |
Weight | 2670 g |
Length | 35.30 cm |
Width | 27.50 cm |
Height | 7.70 cm |
Weight | 2.81 kg |
