Product details

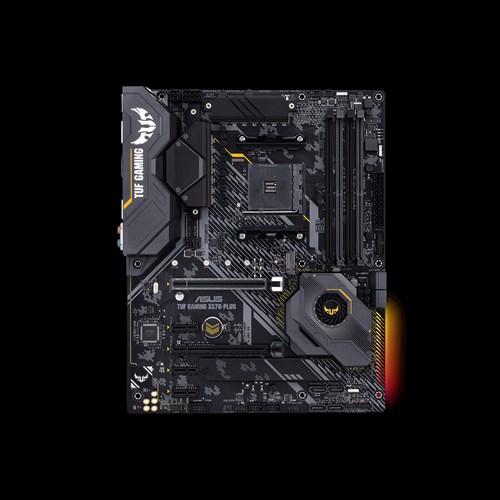

TUF Gaming motherboards enable easy and secure PC building by focusing on outstanding design, innovative technology, and strong partnerships with leading component manufacturers. The unparalleled combination of military-grade TUF components, TUF protection, and the TUF Gaming Alliance ensures that your gaming system can handle any challenge. PCI Gen. 4.0 only works in combination with a 3rd Gen Ryzen processor (Ryzen 3/5/7/9 3xxx).
Processor family | Ryzen 2nd Gen, Ryzen 3rd generation |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (8x) |
Mainboard features | Clear CMOS Button, COM Port Header, Trusted Platform Module |
Item number | 11270267 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1180-M0EAY0 |
Release date | 21/6/2019 |
External links |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD X570 |
Mainboard features | Clear CMOS Button, COM Port Header, Trusted Platform Module |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | Ryzen 2nd Gen, Ryzen 3rd generation |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-2666, DDR4-2933, DDR4-3000, DDR4-3200 |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 4400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | HDMI 1.4b |
Multi-GPU technology | AMD CrossfireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek L8200A |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC S1200a |
Audio channel | 8.0 Channel |
Audio Connections | Jack 3.5mm (5x), Optical TOSLINK (1x) |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (8x) |
Expansion slot | PCI Express x1 (2x), PCI Express x16 (2x) |
PCI express version (max.) | 4 |
Number of fan connector | 6 |
Peripheral connections | PS/2 Combo, USB 3.0 Type-A (4x), USB 3.1 Gen 2 Type-A (2x), USB Type-C (1x) |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 305 mm |
Width | 244 mm |
Height | 244 mm |
Weight | 1000 g |
Length | 34.30 cm |
Width | 27.30 cm |
Height | 6.90 cm |
Weight | 1.49 kg |
Product Safety |
Specifications may include unverified machine translations.
