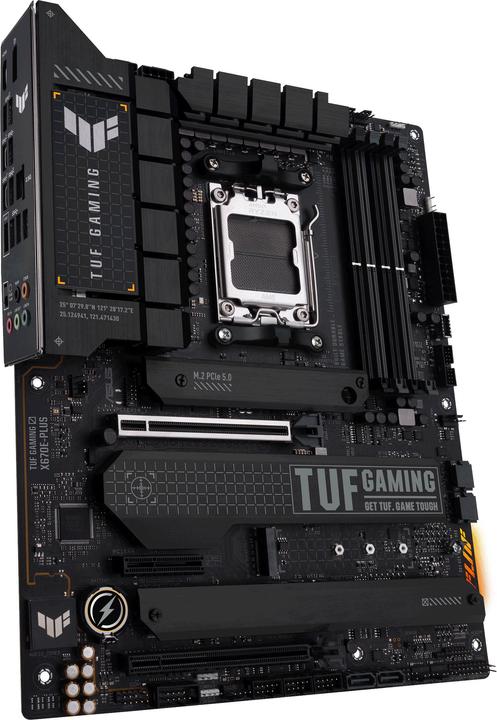

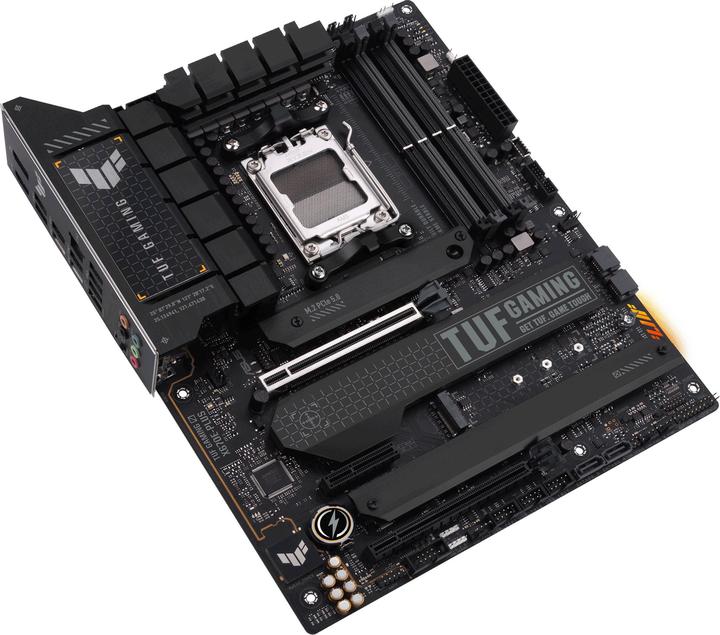

ASUS TUF Gaming X670E-Plus

AM5, AMD X670E, ATX
35Ratings
Currently out of stock
Show all

Product details

Key specifications

Processor family
Ryzen 7th Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 PCIe (4x),
S-ATA III (4x)
Mainboard features
Clear CMOS Button,
Front panel audio connector,
RGB header
Item number
22459195

General information

Manufacturer
Category
Manufacturer no.
90MB1BJ0-M0EAY0
Release date
16.8.2022

Motherboard properties

Form factor
ATX
Processor socket
AM5
Chipset
AMD X670E
Mainboard features
Clear CMOS Button,
Front panel audio connector,
RGB header
Operating system compatibility
Windows,
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Ryzen 7th Gen

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
192 GB
Memory chip
DDR5
Max. RAM OC
8000 MHz
Supported memory speed
4800 MHz,
5000 MHz,
5200 MHz,
5400 MHz,
5600 MHz,
5800 MHz,
6000 MHz,
6200 MHz,
6400 MHz
Memory type
DDR5 RAM
RAM buffer
On-Die ECC,
Unbuffered

Graphics properties

Video connections
DisplayPort (1x),
HDMI (1x)
Video connection version
Display port 1.4,
HDMI 2.1

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Ethernet controller brand
Realtek
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek S1220A
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (5x)

Data storage

RAID configuration
0,
1,
10

Internal interfaces

Internal connection options
M.2 PCIe (4x),
S-ATA III (4x)
Expansion slot
PCI Express x16 (1x),
PCI Express x4 (1x)
PCI express version (max.)
5
Number of fan connector
4

Further connections

USB ports
USB-A
Peripheral connections
USB 2.0 Type-A (3x),
USB 3.2 Gen 1 (6x),
USB 3.2 Gen 2 (5x),
USB 3.2 Gen 2x2 (1x)

Power supply

Power connectors
24-pin ATX,
2x 8-pin ATX 12V

Sustainability

Manufacturer commitment
RE100,
SBTi

Scope of delivery

Scope of delivery
2x M.2 screws,
Sata Cables

Product dimensions

Length
244 mm
Width
305 mm
Height
244 mm
Weight
2350 g

Package dimensions

Length
34.40 cm
Width
28.10 cm
Height
7.30 cm
Weight
1.94 kg
