AC/DC Dual Mode | Dual Channel Fast Charging

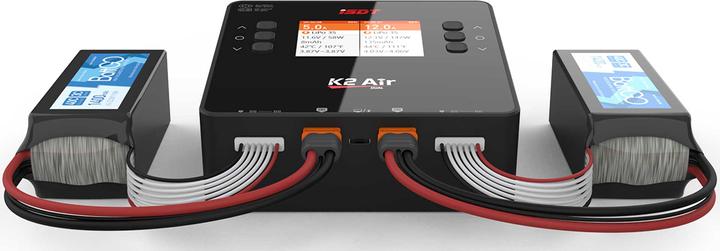

Synchronous Parallel Charging | 2.8" IPS LCD Display

AC/DC dual input for different usage requirements.
Output: AC 200W, DC 500W x2.

AC/DC safe access
User-friendly input interface. Intelligent design.
The DC input port and the AC input port are mutually exclusive.
Only one input can be selected at a time, ensuring safe operation.

Intelligent high-speed processor provides parameters for each port.
Effortlessly delivers a maximum charging power of up to 500W for one port.

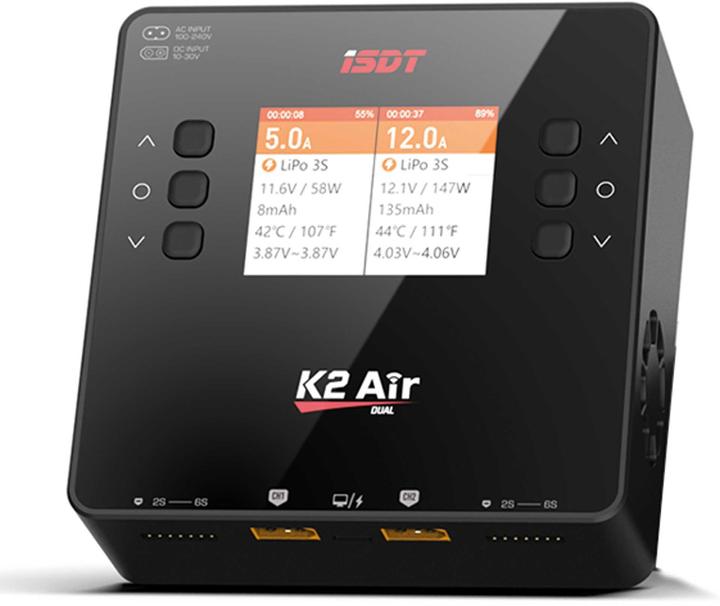

2.8" IPS LCD Display
Low power consumption, 178° viewing angle.
Clear and distinct display, even in challenging environments or angles, as well as in strong sunlight.

Two-way USB interface
By connecting the microUSB port of the charger to the PC, all series can receive the latest firmware upgrade.
Mobile devices can be charged via the USB Type-C interface with 5V/2A power.

Supports the brand-new BattAir Smart Battery technology.
Intelligent information exchange with BattAir batteries. Automatic detection of battery type, adjusts optimal charging parameters.
Safe and intelligent.

Specifications:

• Input Voltage: AC 100~240V / DC 10~30V
• Output Voltage: DC 1~30V
• Max Input Current: DC 35A
• Charging Current: 0.2~20A x2
• Discharging Current: 0.2~1.5A x2
• Balancer Current: 1.5A/Cell Max
• Max Discharge Power: 15W x2
• Max Charge Power: AC 200W / DC 500W x2
• Alarm for unusual voltage: Yes
• Alarm for incorrect cell number setting: Yes
• Supported battery types and cell counts: LiFe, LiIon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH/Cd 1-16S
• Parallel charging power and current: 800W/35A
• Parallel discharging power and current: 30W/3A
• Operating Temperature: 0~40°C
• Storage Temperature: -20°C~60°C
• Dimensions: 135 x 135 x 64 mm
• Weight: Approx. 700 g

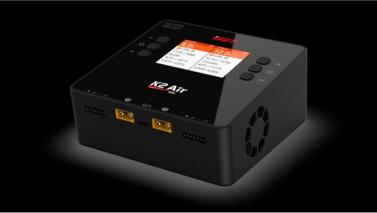

K2Air.
