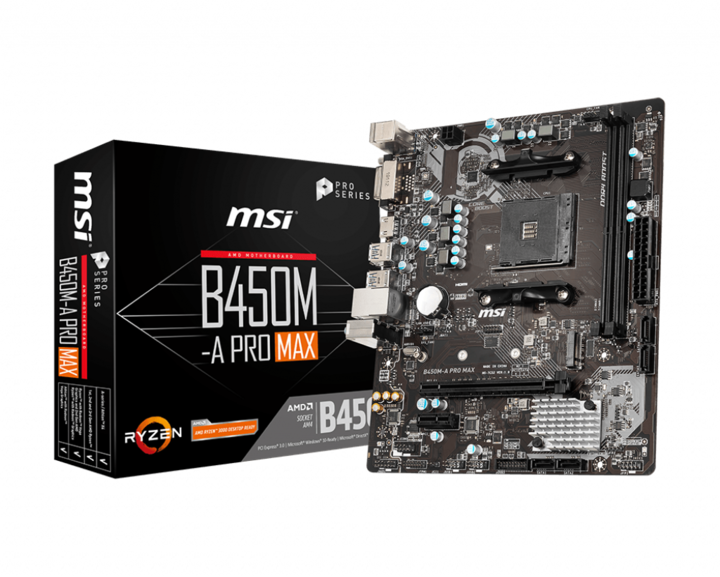

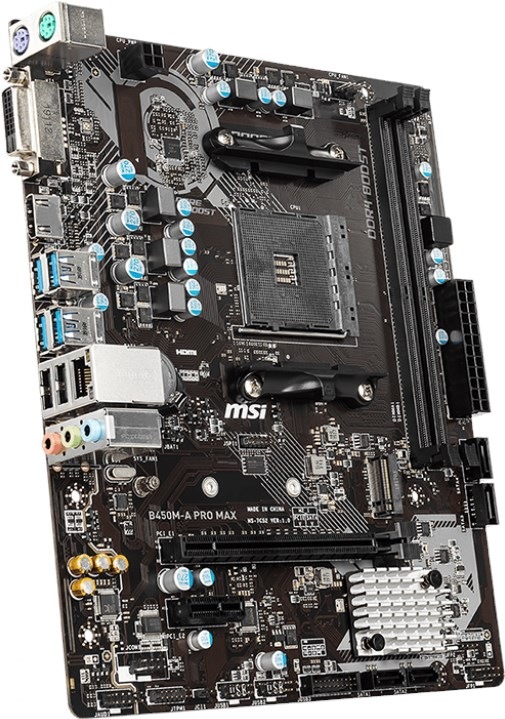

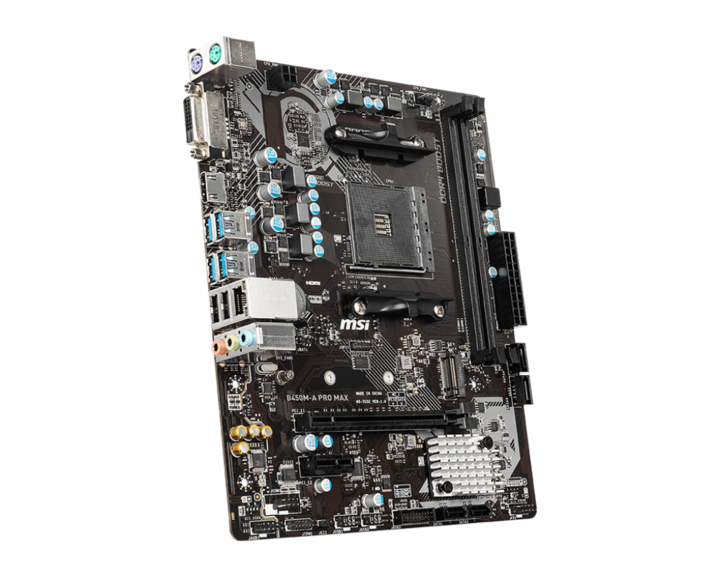

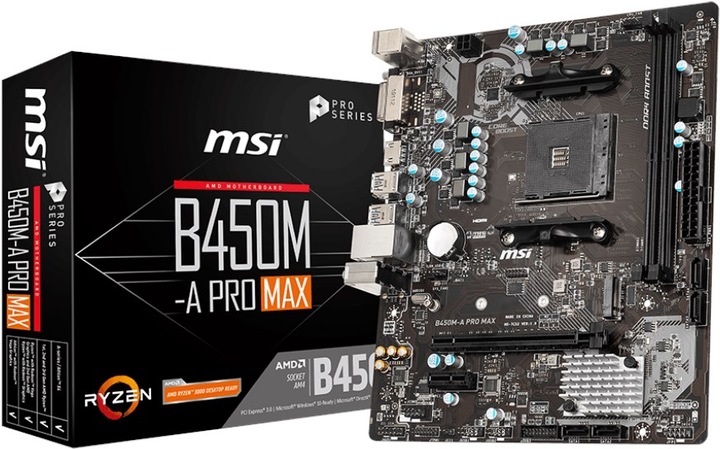

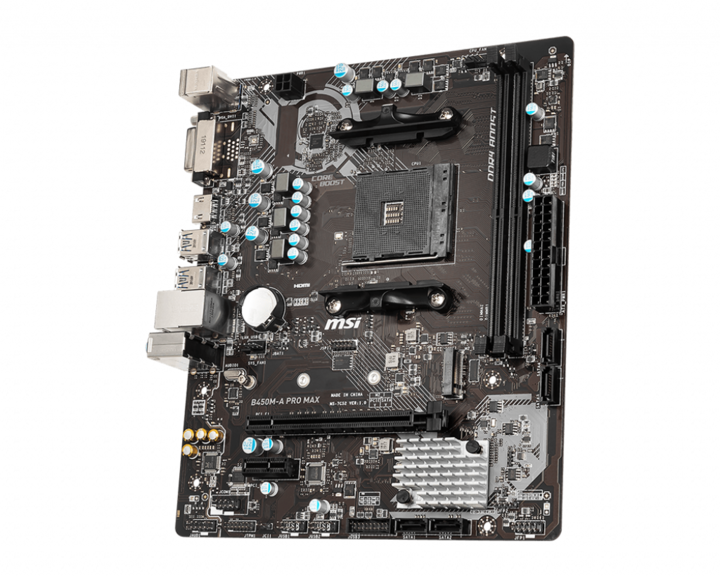

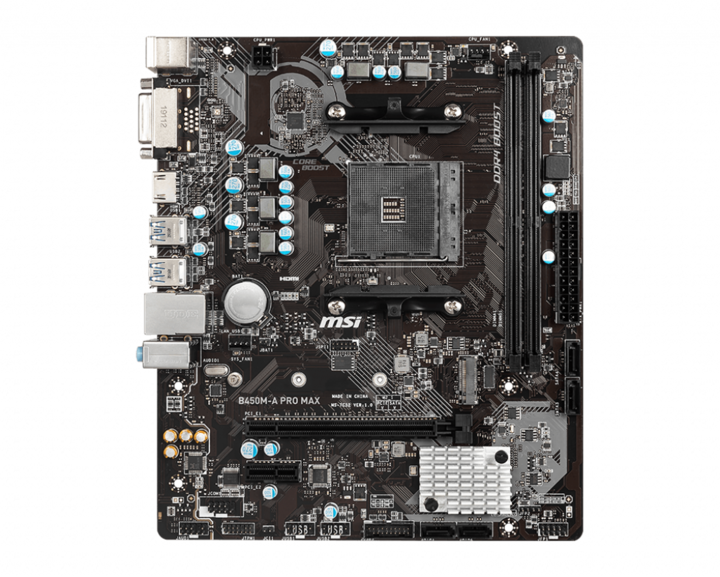

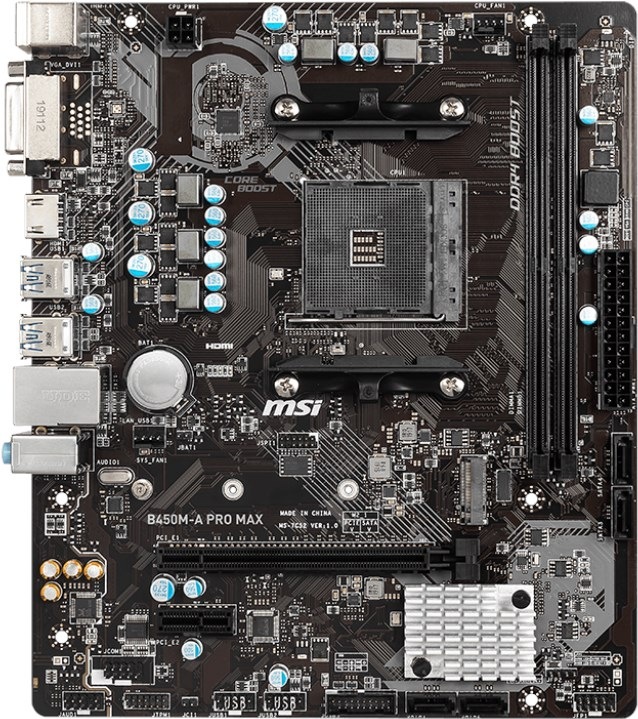

MSI B450M-A Pro Max

AM4, AMD B450, mATX
36Ratings
BrandMore from MSI
Currently out of stock

Product details

Every motherboard from MSI is built around a specific guiding theme to cater to different tastes and requirements. The heat sinks are modern in design, provide ample surface area, and are still slim. Simple cuts in the heat sink give the component a stylish and powerful appearance. Combined with neutral colors like black, gray, and silver as a backdrop, MSI motherboards fit into many systems. Customize your motherboard to your liking.

Key specifications

Processor family
Ryzen 1st Gen, Ryzen 2nd Gen, Ryzen 3rd generation
Memory type
DDR4-RAM
Number of memory modules (RAM)
2 x
Internal connection options
S-ATA III (4x)
Mainboard features
Front panel audio connector
Documents
Manual.pdf
Item number
12285305

General information

Manufacturer
MSI
Category
Motherboards
Manufacturer no.
7C52-001R
Release date
6/11/2019

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
AM4
Chipset
AMD B450
Mainboard features
Front panel audio connector
Operating system compatibility
Windows 10, Windows 7

Processor

Processor family
Ryzen 1st Gen, Ryzen 2nd Gen, Ryzen 3rd generation

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
2 x
Max. memory (RAM)
32 GB
Memory chip
DDR4-1866, DDR4-2133, DDR4-2400, DDR4-2667, DDR4-2800, DDR4-2933, DDR4-3000, DDR4-3066, DDR4-3200, DDR4-3466, DDR4-3733, DDR4-3866, DDR4-4000, DDR4-4133
Max. RAM OC
4133 MHz
Supported memory speed
1866 MHz, 2133 MHz, 2400 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz
Memory type
DDR4-RAM
RAM buffer
ECC Registered

Graphics properties

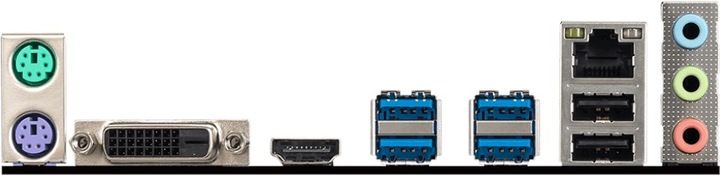

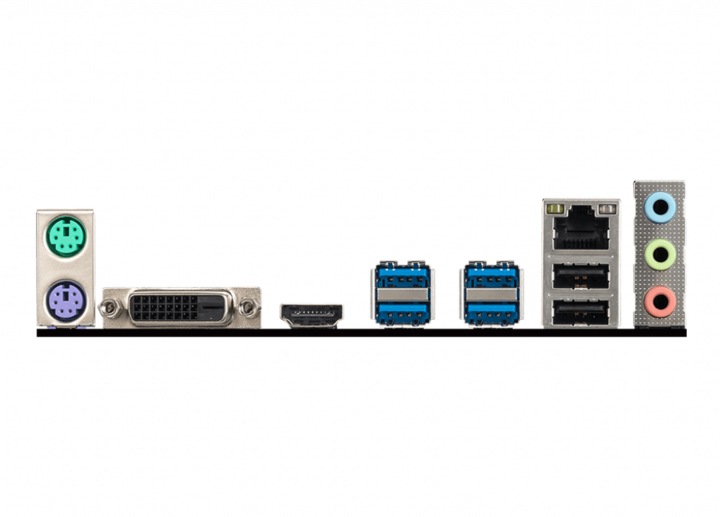

Video connections
DVI-D (1x), HDMI (1x)

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek 8111H
Max. port speed
8 Gbit/s

Audio

Chip
Realtek ALC892
Audio channel
7.1 Channel
Audio Connections
Headphone output (1x)

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x16 (1x)
PCI express version (max.)
3

Further connections

USB ports
USB-C

Power supply

Power connectors
24-pin ATX, 8-pin ATX 12V

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
200 mm
Width
236 mm
Height
65 mm
Weight
760 g

Package dimensions

Length
26.40 cm
Width
26.20 cm
Height
5.60 cm
Weight
708 g
