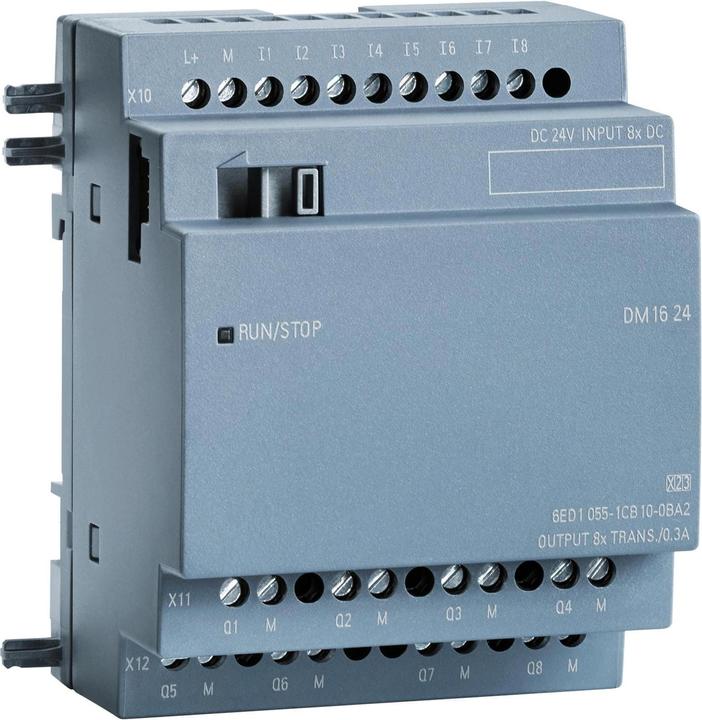

Siemens Expansion modules LOGO!8 DM16 24 8DI/8DOA
Price in EUR including VAT, free shipping
Delivered between 10/1/2025 and 14/1/2025
More than 10 items in stock at supplier
More than 10 items in stock at supplier
Product details
Series = LOGO! 8
Supply voltage = 24 V dc
Output type = Digital
Number of outputs = 8
Input type = Digital
Number of inputs = 8
Mounting type = DIN top-hat rail
width = 71.5mm
depth = 58mm
Dimensions =
Supply voltage = 24 V dc
Output type = Digital
Number of outputs = 8
Input type = Digital
Number of inputs = 8
Mounting type = DIN top-hat rail
width = 71.5mm
depth = 58mm
Dimensions =
90 x 71,5 x 58 mm
Programmable interface = computer
Module type = I/O extension
Operating temperature max. = +55°C
LOGO! 8 - expansion modules. LOGO!8 is the latest generation of intelligent logic modules from Siemens and provides an improved upgrade of the previous generation. The improvements include simplified handling, a new visual display and full communication functions via Ethernet throughout the entire logic module series. Another advantage of LOGO!8 is that all logic modules are equipped with an integrated web server with drag and drop programming. Knowledge of HTML coding is not required. A variety of expansion modules especially for Logo!8, so that individual expansion to 24 digital inputs, 16 digital outputs, 8 analog inputs and 2 analog outputs is possible. Maximum configurations offer up to 88 digital inputs, 80 digital inputs, 40 analog inputs and 18 analog outputs. The flexibility of the LOGO!8 expansion options offers the user extensive customization to ensure that the application is covered.
Programmable interface = computer
Module type = I/O extension
Operating temperature max. = +55°C
LOGO! 8 - expansion modules. LOGO!8 is the latest generation of intelligent logic modules from Siemens and provides an improved upgrade of the previous generation. The improvements include simplified handling, a new visual display and full communication functions via Ethernet throughout the entire logic module series. Another advantage of LOGO!8 is that all logic modules are equipped with an integrated web server with drag and drop programming. Knowledge of HTML coding is not required. A variety of expansion modules especially for Logo!8, so that individual expansion to 24 digital inputs, 16 digital outputs, 8 analog inputs and 2 analog outputs is possible. Maximum configurations offer up to 88 digital inputs, 80 digital inputs, 40 analog inputs and 18 analog outputs. The flexibility of the LOGO!8 expansion options offers the user extensive customization to ensure that the application is covered.
| Automation functions | Expansion module |
| Item number | 9735666 |
| Manufacturer | |
| Category | |
| Manufacturer no. | 6ED1055-1CB10-0BA2 |
| Release date | 7.12.2018 |
| Automation type | Industrial automation |
| Automation functions | Expansion module |
| Application range | Indoor |
| Manufacturer Type | 6ed1055-1cb10-0ba2 |
| mounting style | Top-hat rail |
| Electric current output | 0.30 A |
| Power supply | Electrical connection |
| Country of origin | China |
| Manufacturer commitment | RE100, SBTi |
| Scope of delivery | 1 piece |
| Length | 58 mm |
| Width | 71.50 mm |
| Height | 90 mm |
| Weight | 227 g |
| Length | 10.50 cm |
| Width | 9 cm |
| Height | 7 cm |
| Weight | 228 g |
