Gigabyte B550M DS3H AC

AM4, AMD B550, mATX
Price in EUR including VAT
17Ratings
BrandMore from Gigabyte
  • free shipping
  • Free returns within 30 days
Delivered between Fri, 24/1 and Tue, 28/1
More than 10 items in stock at supplier

Product details

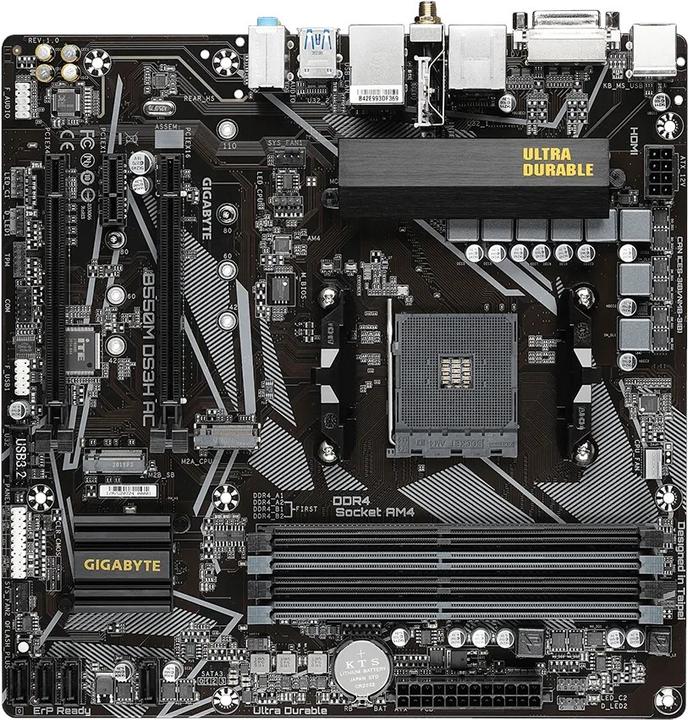

The Gigabyte B550M DS3H AC is a motherboard for AMD processors of the Ryzen series with the AM4 socket. It supports DDR4 memory with a speed of up to 4733 MHz and has four DIMM slots for a maximum memory
capacity of 128 GB.

The motherboard features an AMD B550 chipset and offers a range of connectivity options, including one PCIe 4.0 x16 slot, one PCIe 3.0 x16 slot (electric x4), one PCIe 3.0 x1 slot and two M.2 slots for fast SSDs. It also offers a variety of USB ports, including USB 3.2 Gen 1 and Gen 2 Type-A and Type-C ports, as well as USB 2.0 ports.

The Gigabyte B550M DS3H AC also offers several networking options, including an Intel GbE LAN port and an integrated Intel Wi-Fi 6 AX200 module that provides support for dual-band WLAN and Bluetooth 5.0.

Key specifications

Processor family
AMD 5000 Series
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (4x)
Wireless transmission
Bluetooth,
Wi-Fi
Mainboard features
Front panel audio connector
Item number
23450893

General information

Manufacturer
Gigabyte Technology
Category
Motherboards
Manufacturer no.
B550M DS3H AC
Release date
25.6.2023
External links
Manufacturer's site (de)

Motherboard properties

Form factor
Micro ATX (mATX)
Processor socket
AM4
Chipset
AMD B550
Mainboard features
Front panel audio connector
Operating system compatibility
Windows,
Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth,
Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
AMD 5000 Series

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4
Supported memory speed
2133 MHz,
2400 MHz,
2933 MHz,
3200 MHz,
4000 MHz,
4400 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DVI-D (1x)
Video connection version
HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller
Intel Dual Band Wireless-AC 3168
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC887
Audio channel
7.1 Channel
Audio Connections
Audio In

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x1 (1x)

Further connections

USB ports
USB-A
Peripheral connections
USB 2.0 Type-A (4x)

Power supply

Power connectors
20+8 pin ATX

Scope of delivery

Scope of delivery
Realtek 8118 Gaming LAN Bandwidth Control Utility

Product dimensions

Length
244 mm
Width
244 mm
Height
244 mm
Weight
800 g

Package dimensions

Length
28.60 cm
Width
28.20 cm
Height
7.70 cm
Weight
993 g
