ASUS Prime X570-P

AM4, AMD X570, ATX
Price in EUR including VAT, free shipping
Delivered between 2/1/2025 and 4/1/2025
Only 1 item in stock at supplier

Series

Product details

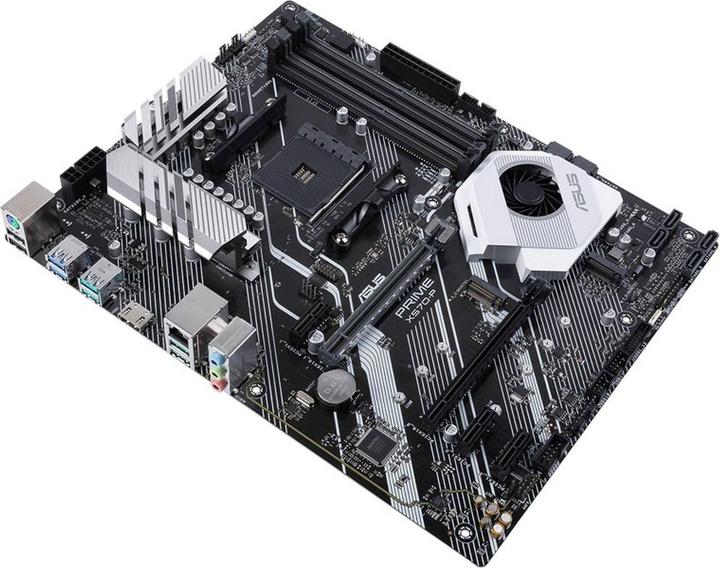

The ASUS PRIME X570-P is based on the AMD X570 chipset and supports AMD processors for the AM4 socket. It has four DDR4 slots for up to 128 GB RAM.
The ASUS PRIME X570-P is also equipped with two PCIe 4.0 x16 slots and three PCIe 4.0 x1 slots. The ASUS PRIME X570-P also features 8-channel sound, a Gigabit LAN interface, six SATA3 ports, two M.2 ports and a range of USB interfaces.

Key specifications

Processor family
Ryzen 2nd Gen
Ryzen 3rd generation
Memory type
DDR4-RAM
Internal connection options
M.2 PCI/SATA Combo (2x)
S-ATA III (6x)

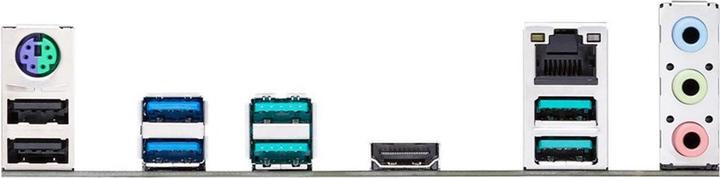

Peripheral connections
PS/2 Combo
USB 2.0 Type-A (2x)
USB 3.0 Type-A (2x)
USB 3.1 Gen 2 Type-A (4x)
Item number
11270654

General information

Manufacturer
Category
Manufacturer no.
90MB11N0-M0EAY0
Release date
25.6.2019
External links

Motherboard properties

Form factor
ATX
Processor socket
AM4
Chipset
AMD X570
Mainboard features
Clear CMOS Button
COM Port Header
Trusted Platform Module
Operating system compatibility
Windows 10
Peripheral connections
PS/2 Combo
USB 2.0 Type-A (2x)
USB 3.0 Type-A (2x)
USB 3.1 Gen 2 Type-A (4x)
BIOS type
UEFI AMI

Processor

Processor family
Ryzen 2nd Gen
Ryzen 3rd generation

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4-2666
DDR4-2933
DDR4-3000
DDR4-3200
Supported memory speed
2133 MHz
2400 MHz
2933 MHz
3000 MHz
3200 MHz
4400 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered
Channel architecture
2

Graphics properties

Video connections
HDMI (1x)
Video connection version
HDMI 1.4b
Multi-GPU technology
AMD CrossfireX

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8111H
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC S1200a
Audio channel
8.0 Channel
Audio Connections
Jack 3.5mm (3x)

Internal interfaces

Internal connection options
M.2 PCI/SATA Combo (2x)
S-ATA III (6x)
Expansion slot
PCI Express x1 (3x)
PCI Express x16 (2x)
PCI express version (max.)
4
Number of fan connector
4

Power supply

Power connectors
24-pin ATX
4-pin ATX 12V
8-pin ATX 12V

Sustainability

Manufacturer commitment
RE100
SBTi

Scope of delivery

Scope of delivery
2 x Serial ATA cable

Product dimensions

Length
305 mm
Width
244 mm
Height
244 mm

Package dimensions

Length
33 cm
Width
27 cm
Height
6 cm
Weight
1.30 kg
